Product Description

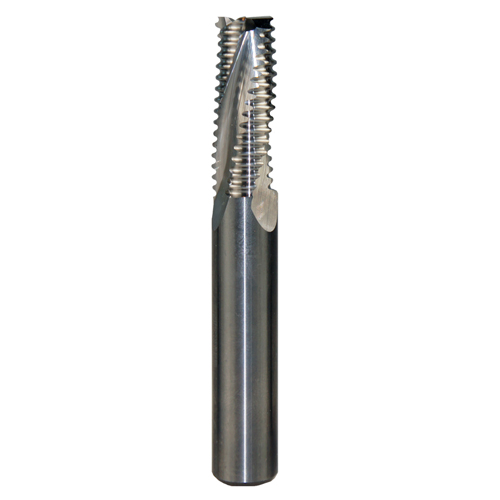

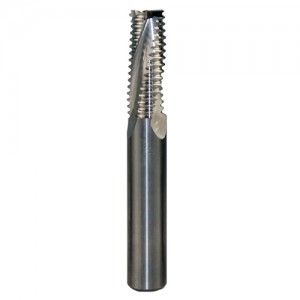

Solid carbide cylindrical spiral cutter positive with roughing cutter (Z=3)
» Three cutting edges
» Right handed / clockwise
» Positive axial angle
» Upward chip removal
» Bottom side cutting
» Cutting diameter equal to shank diameter
Application
For pre-cutting including solid wood, sheeting, medium density fibreboard and various plastics.
Available with several teeth according to the preferences.
| Article Nr. | Diameter | Cutting lenght | Total length | Shank |
|---|---|---|---|---|
| 3007.060.00 | 6 | 20 | 70 | 6 |
| 3007.080.00 | 8 | 22 | 70 | 8 |
| 3007.080.01 | 8 | 32 | 80 | 8 |
| 3007.080.02 | 8 | 42 | 90 | 8 |
| 3007.100.00 | 10 | 32 | 80 | 10 |
| 3007.100.01 | 10 | 42 | 90 | 10 |
| 3007.100.02 | 10 | 52 | 100 | 10 |
| 3007.120.00 | 12 | 32 | 80 | 12 |
| 3007.120.01 | 12 | 42 | 90 | 12 |
| 3007.120.02 | 12 | 52 | 100 | 12 |
| 3007.140.00 | 14 | 32 | 80 | 14 |
| 3007.140.01 | 14 | 42 | 90 | 14 |
| 3007.140.02 | 14 | 52 | 100 | 14 |
| 3007.160.00 | 16 | 32 | 80 | 16 |
| 3007.160.01 | 16 | 42 | 90 | 16 |
| 3007.160.02 | 16 | 52 | 100 | 16 |
| 3007.160.03 | 16 | 72 | 120 | 16 |
| 3007.180.00 | 18 | 52 | 100 | 18 |
| 3007.180.01 | 18 | 72 | 120 | 18 |
| 3007.180.02 | 18 | 102 | 15 | 18 |
| 3007.200.00 | 20 | 52 | 100 | 20 |
| 3007.200.01 | 20 | 72 | 120 | 20 |
| 3007.200.02 | 20 | 102 | 150 | 20 |
| 3007.200.03 | 20 | 150 | 200 | 20 |
| 3007.200.04 | 20 | 200 | 260 | 20 |
